Commercial Spaces: Key Principles of Electrical Services

Components In Commercial Electrical Systems

This guide delves into the core elements of commercial electrical services, offering practical knowledge to inform decision-making.

Commercial electrical systems vary according to the scale and complexity of business need, handling higher amperage loads to support multiple tenants, heavy machinery, and continuous operations.

Amperage, the measure of electrical current flow, is pivotal, think of it as the "volume" of electricity coursing through wires, typically rated in amps (e.g., 30-100 amps per circuit for lighting or HVAC in offices). Undersized conductors can lead to overheating, while proper sizing ensures stable performance.

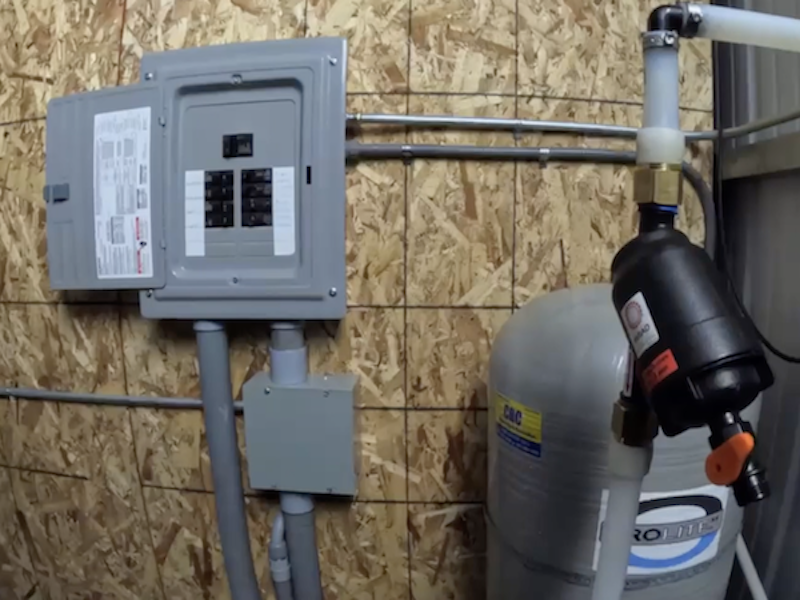

The core lies the main distribution panel, which branches into subpanels for zoned control.

These systems must comply with the National Electrical Code (NEC) for commercial applications, mandating features like emergency disconnects and surge protection. For instance, a mid-sized office might draw 400 amps total, distributed across phases to balance loads and prevent voltage drops that could affect sensitive equipment.

Educational Tip

Conduct a load calculation using NEC Article 220: sum the demand factors for lighting (3 VA per sq ft), receptacles (180 VA per yoke), and motors (125% of full-load amps). This exercise reveals if your system can accommodate expansions, like adding EV charging stations, without risking overloads.

Regular energ audits, using clamp meters to measure actual amperage, help identify imbalances early, fostering a proactive stance on system health.

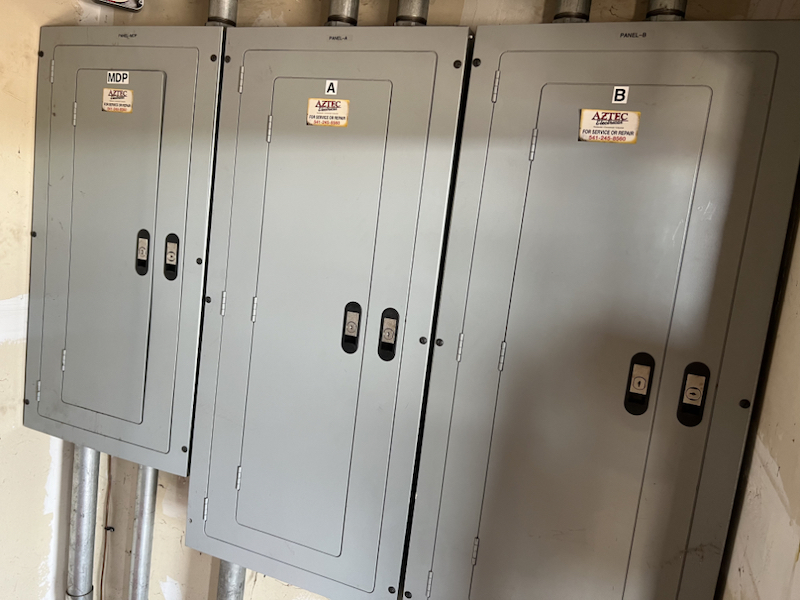

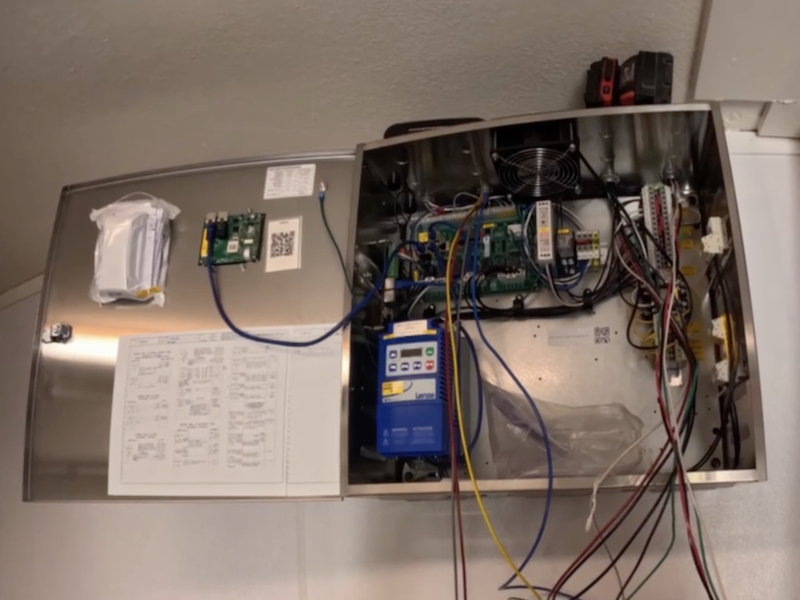

Control panels, often customized with metering and remote monitoring, centralize your energy management.

They integrate relays and fuses to isolate faults, ensuring one tripped breaker doesn't cascade into widespread outages. Understanding panel layouts, via labeled schematics, empowers facility managers to troubleshoot minor issues, such as a 20-amp branch for conference room outlets flickering under projector load.

By grasping these fundamentals, businesses are able to anticipate needs, like upgrading to 480-volt three-phase power for industrial zones, which distributes amperage more efficiently than single-phase setups

Harnessing Commercial Energy Management Systems for Efficiency

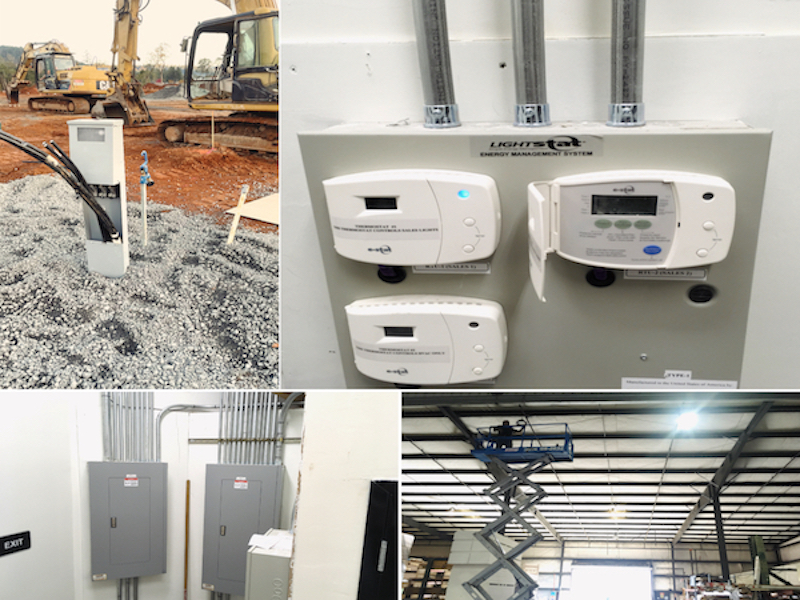

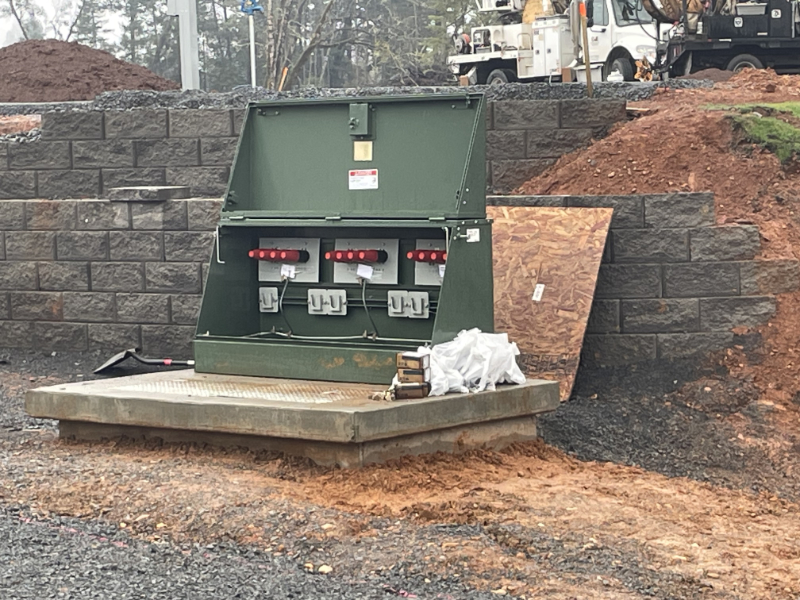

Commercial energy management systems (CEMS) elevate basic electrical systems into intelligent networks, tracking and modulating consumption across vast spaces. These platforms use sensors and software to analyze real-time data, optimizing for peak demand and off-peak savings—crucial in buildings where lighting and HVAC can consume 50-60% of energy budgets.

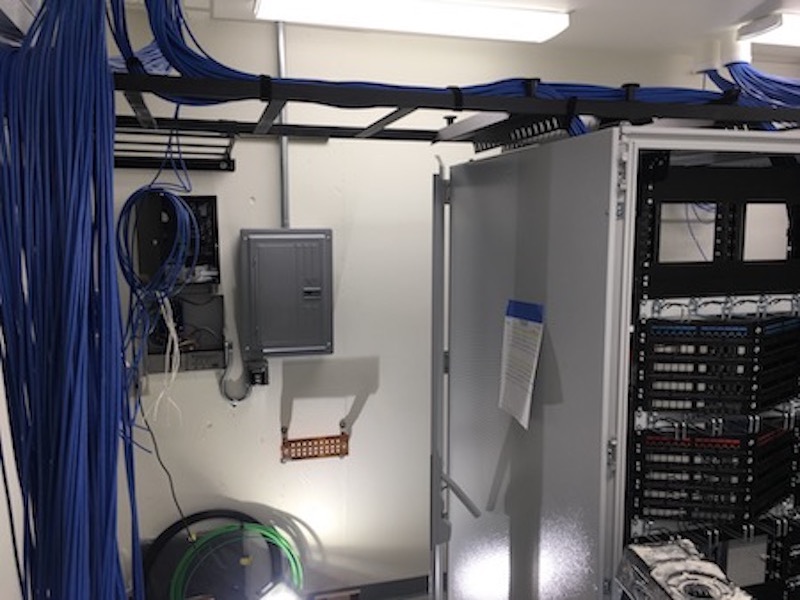

A typical CEMS interfaces with the building's electrical systems via Modbus or BACnet protocols, monitoring amperage at key nodes like chiller units or server rooms. For example, it can detect spikes from simultaneous elevator use and redistribute loads to underutilized circuits, maintaining voltage stability.

Integration With Utility Meters Provides Granular Insights

For eample, a retail center might learn that refrigeration accounts for 30% of draw during summer peaks, prompting automated curtailments.

Key to this is demand response—programming the system to shed non-essential loads during grid stress, potentially earning rebates from utilities. Educational tool: Free software from the Department of Energy, like OpenStudio, simulates CEMS scenarios based on your floor plans and equipment specs, projecting 10-20% reductions in kWh usage.

Challenges include interoperability; legacy systems may require gateways to bridge protocols, ensuring seamless data flow without amperage surges from incompatible devices.

Case in point: A warehouse retrofitting CEMS saw 15% savings by syncing LED fixtures to occupancy, avoiding constant high-amperage pulls. This not only educates on energy flows but also highlights how CEMS dovetail with broader electrical infrastructure for resilient operations.

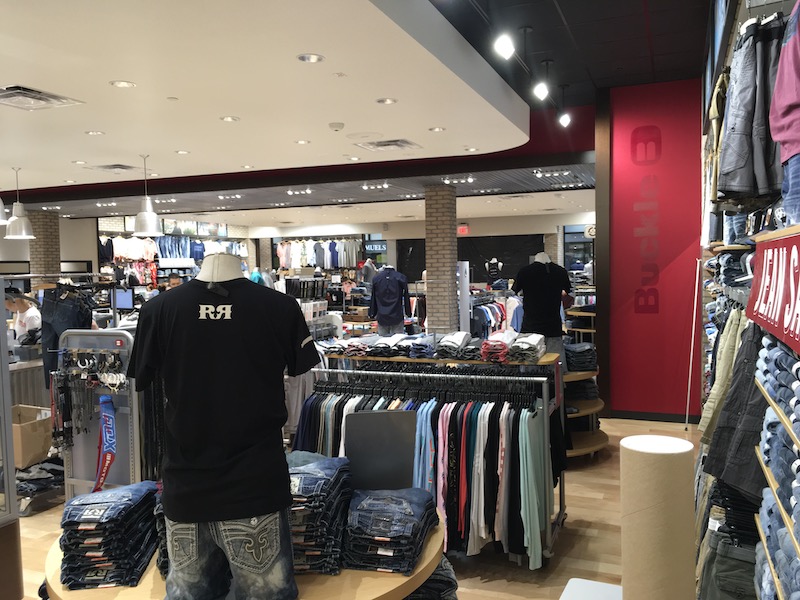

Lighting Design and Energy Efficient Buildings

Lighting design in commercial settings transcends mere illumination; it's a strategic element in crafting energy efficient buildings. Thoughtful schemes layer general, task, and accent lighting to enhance productivity while curbing waste, with LEDs now standard for their 50-70% efficiency gains over fluorescents.

Design Principles Start With Lumens-per-Square-Foot Calculations

Offices need 30-50 lumens/sq ft for desks, per IESNA guidelines, achieved via tunable fixtures that adjust color temperature (3000K warm for lobbies, 5000K cool for workspaces). Energy efficiency amplifies through controls like daylight harvesting—sensors dim artificial lights near windows, reducing amperage on dedicated circuits.

In energy efficient buildings, lighting integrates with the envelope. High-performance glazing minimizes glare, allowing lower wattage. A practical exercise is mapping your space with dialux software, inputting fixture specs to optimize spacing and avoid hot spots that strain control panels.

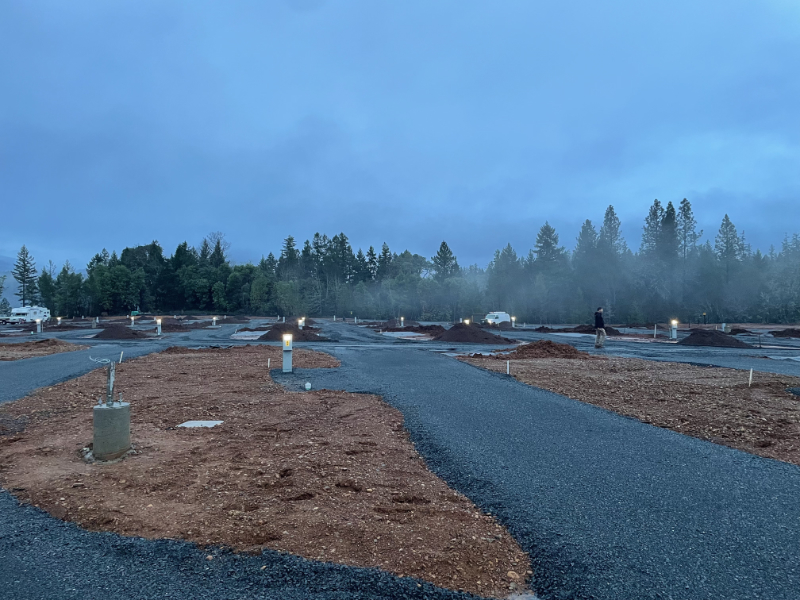

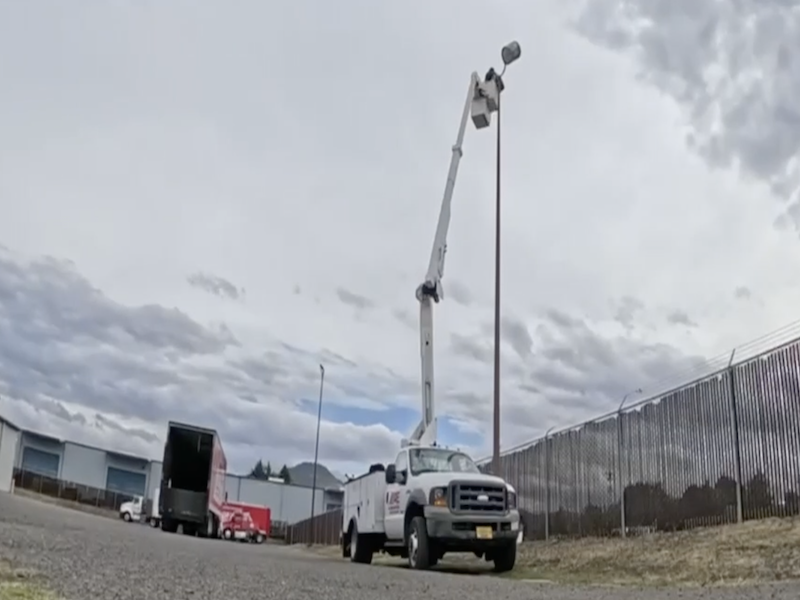

For parking lots, design incorporates pole-mounted LEDs with wide-beam optics, ensuring 1-5 footcandles for safety without over-illumination. Photocells and timers automate dusk-to-dawn operation, slashing nighttime energy by 40%. Maintenance brings benefits: regular cleaning preserves output, as dust can cut efficacy by 20%, indirectly managing amperage by preventing compensatory overuse.

Lighting maintenance for offices and parking lots extends this vigilance. Quarterly inspections check ballast integrity and LED drivers, replacing those exceeding 10% voltage drop. In parking areas, elevate fixtures to deter vandalism and use surge-protected junctions to handle weather-induced spikes.

Tools like lux meters quantify output degradation, guiding schedules—e.g., relamping every 50,000 hours for 70% lumen maintenance. This routine not only sustains efficiency but educates on the interplay between cabling, controls, and illumination for holistic system care.
