Essential Insights into Residential Electrical Services

Foundations of Home Electrical Systems

Every home relies on a well-designed energy management system to distribute power safely and efficiently.

At its heart, an electrical system comprises wiring, panels, and components that work in harmony to deliver electricity from the utility grid to your outlets and fixtures. Understanding these elements begins with grasping basic concepts like voltage and outlets, which are crucial for preventing overloads and ensuring smooth operation. Voltage refers to the electrical "pressure" that pushes current through wires, typically standardized at 120 volts for standard household circuits in North America.

This level is sufficient for most appliances, from refrigerators to hair dryers, but mismanagement—such as using extension cords that drop voltage—can lead to inefficiencies or hazards. For instance, low voltage might cause lights to flicker or motors to underperform, straining the system over time. Homeowners can monitor this by using a simple multimeter to check outlet readings; ideal fluctuations should stay within 5% of the nominal 120 volts.

Outlets, or receptacles, serve as the access points for plugging in devices. Modern codes require grounded outlets in most rooms to safely divert excess current, reducing shock risks. Yet, many older homes still feature ungrounded two-prong outlets, which pose dangers with today's grounded appliances. Replacing them involves not just swapping plugs but verifying the underlying wiring integrity.

Educational Tip

When selecting outlets, opt for tamper-resistant models, which have built-in shutters to prevent children from inserting objects; a simple upgrade that aligns with updated National Electrical Code (NEC) standards.

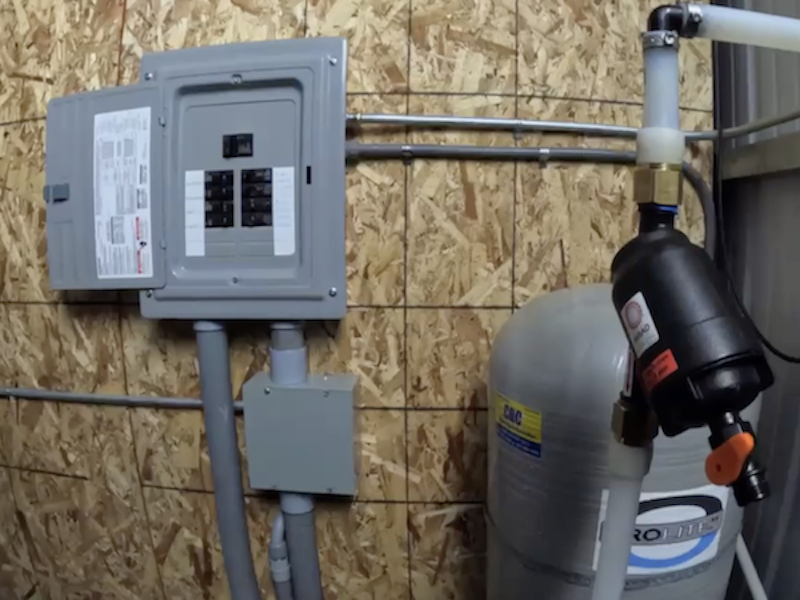

Circuit breakers act as the system's guardians, automatically interrupting power flow during overloads or short circuits. Located in your main electrical panel, these devices replace outdated fuses and can be reset after tripping, making them user-friendly for minor issues like a jammed toaster.

However, frequent tripping signals deeper problems, such as undersized wiring or excessive load from multiple high-draw devices. Learning to interpret breaker labels, indicating amperage ratings like 15 or 20 amps, empowers homeowners to balance loads across circuits, avoiding blackouts during peak usage.

By familiarizing yourself with these components, you lay the groundwork for a resilient electrical system. Regular visual inspections, such as checking for warm outlets or frayed cords, can catch issues early. For more complex diagnostics, consulting resources like the NEC handbook provides a wealth of diagrams and explanations. It will deepen your understanding and help you take a proactive approach to home maintenance.

Integrating Home Energy Management Systems for Smarter Living

As homes grow more connected, home energy management systems (HEMS) emerge as a pivotal tool for monitoring and optimizing electricity use. These systems, often app-controlled hubs integrated with smart meters and sensors, offer real-time insights into consumption patterns, helping users identify inefficiencies without guesswork.

Some example of how homes today have improved requirements versus 15 years ago.

• Surge Protection: The 2020 NEC introduced the requirement for surge-protective devices (SPDs) for all new dwelling units, which was not a general requirement in 2010. The 2023 NEC further specified minimum ratings for these devices.
• Emergency Disconnects: Modern codes (starting with the 2020 NEC) require an emergency disconnecting means to be installed in a readily accessible outdoor location for all one- and two-family dwelling units.
• Provisions for Electrification: Current codes include new articles and updated requirements for evolving technologies, such as Electric Vehicle Supply Equipment (EVSE) chargers, energy storage systems (ESS), solar photovoltaic (PV) systems, and smart home energy management systems (EMS).
• Kitchen Island Outlet Location: A recent change in the 2023 NEC no longer allows outlets to be installed below the working surface of kitchen islands/peninsulas; they must be installed in, on, or above the countertop (e.g., pop-up outlets or on a raised surface)

A HEMS typically connects to your main panel via current transformers that measure power draw from individual circuits. This data feeds into software that tracks usage by appliancer. For example, how much energy your HVAC system consumes during hot afternoons.

Electrical education value: Users learn that standby power from "vampire" devices like chargers can account for up to 10% of a household's bill, prompting simple unplugging habits or smart plugs that automate shutoffs.

Beyond monitoring, HEMS facilitate automation.

Imagine programming lights to dim based on occupancy or alerting you to voltage spikes from storms. These features rely on stable electrical systems; incompatible wiring can cause communication failures, underscoring the need for professional assessments before installation.

Studies from the U.S. Department of Energy show that HEMS users reduce energy use by 5-15% through informed adjustments, translating to hundreds of dollars saved annually without lifestyle sacrifices.

Implementing a HEMS starts with compatibility checks.

We are happy to visit your home and conduct a home safety review to ensure your panel supports the required breakers for added circuits, and verify outlet configurations for sensor placement.

Free online calculators from energy.gov can estimate potential savings based on your square footage and appliance inventory. This knowledge not only demystifies the technology but also highlights how it dovetails with broader electrical systems for holistic efficiency.

If you are considering upgrading, take a look at scalable options, such as open-protocol systems (e.g., those using Zigbee or Z-Wave) that avoid vendor lock-in. Tutorials on platforms like YouTube break down installation steps, but always prioritize safety, working with live wires demands expertise to prevent arcs or shocks.

Mastering Lighting Design and Energy-Efficient Lighting

Lighting design profoundly influences a home's ambiance, functionality, and energy footprint.

Thoughtful lighting design involves layering ambient, task, and accent lights to suit spaces, while prioritizing energy-efficient lighting ensures sustainability without compromising aesthetics.

Start with the basics: Incandescent bulbs, once standard, convert only 10% of energy to light, wasting the rest as heat. In contrast, LEDs achieve 90% efficiency, lasting up to 25 times longer and using 75% less power. This shift matters because lighting accounts for about 15% of a typical home's electricity bill.

Designing around LEDs means selecting fixtures with appropriate drivers to maintain steady voltage, avoiding dimming incompatibilities that could shorten bulb life.

Energy-efficient lighting extends to circuit planning.

Dedicated circuits for high-lumen areas like kitchens prevent overloads when multiple fixtures activate simultaneously. For instance, under-cabinet LEDs on a 15-amp circuit can handle 12 fixtures at 5 watts each, well below capacity, allowing headroom for future additions.

Educational exercises: Calculate wattage loads (volts x amps = watts), to map your needs accurately.

In lighting design, consider color temperature, measured in Kelvin (K), to evoke moods: 2700K for warm, cozy living rooms; 4000K for crisp, productive offices.

Layering achieves balance: Recessed cans for general illumination, pendants for tasks, and strips for accents. Tools like free design software from Philips or Cree simulate layouts, factoring in beam angles and spacing to minimize shadows.

To enhance efficiency, integrate motion sensors or photocells in outdoor or hallway setups, reducing unnecessary runtime. The ENERGY STAR program certifies products meeting rigorous standards, backed by lab tests for lumens-per-watt ratios. With an energy audit you know your current setup. For example, replacing 60W incandescents with 9W LEDs could cut lighting energy by 80%, a fact supported by EPA data.
